Huawei eKit

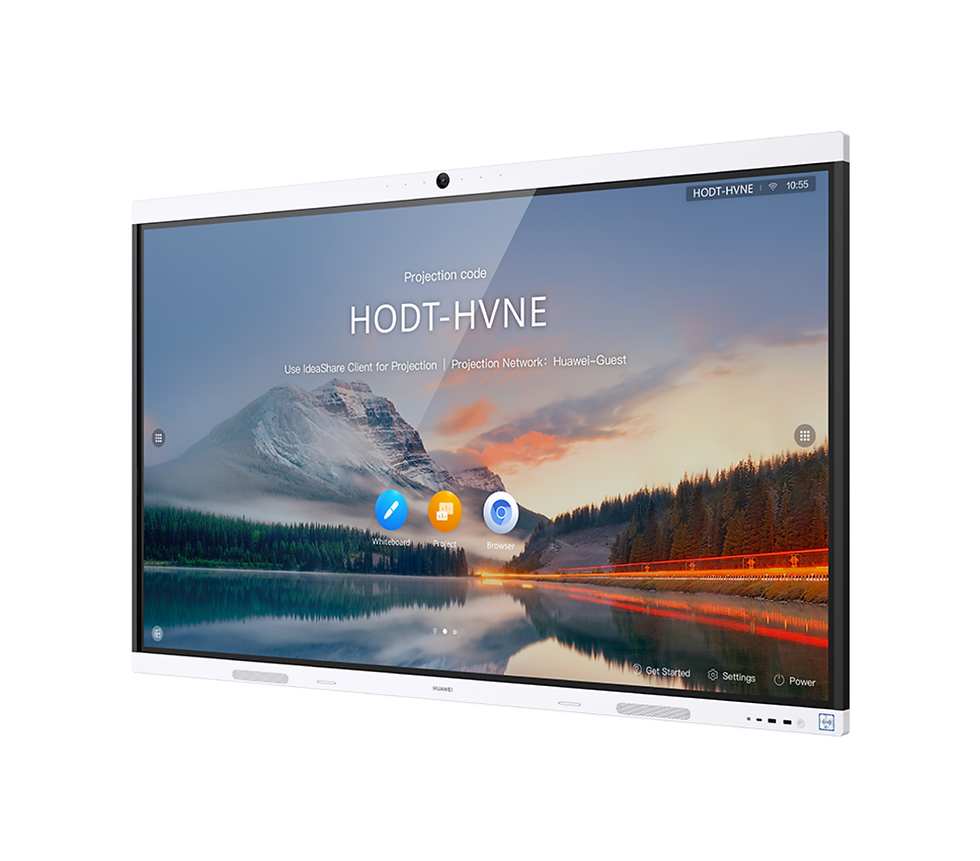

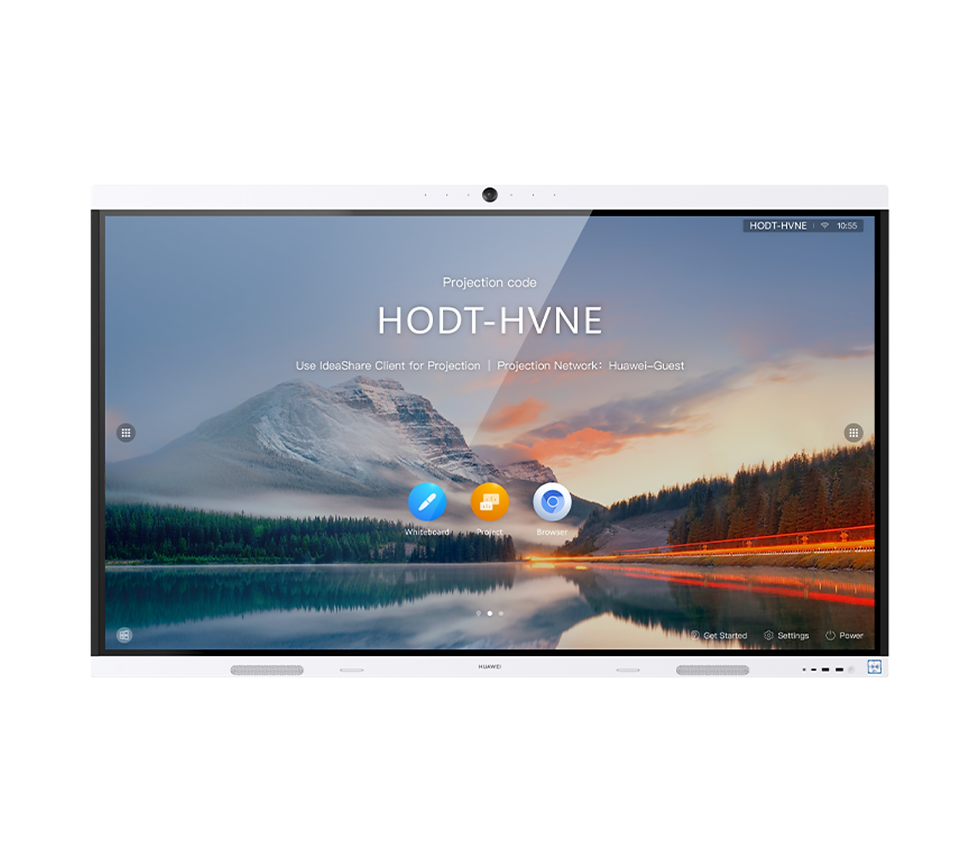

IdeaHub B2-86

HUAWEI IdeaHub B2 is the next-generation intelligent meeting panel that delivers HD cloud conferencing. With dual Wi-Fi design and an optical anti-blue light feature, it offers an upgraded projection and writing experience perfect for multiple office environments, including meeting rooms, manager offices, and open office areas.

Specifications

Model

IHB2-86PU

Product dimensions

1953.0mm × 91.8mm × 1180.6mm

Package dimensions

2090mm × 250mm × 1300mm

Device

1

Stylus pen

2

Cable

Power cable x 1

Rolling Stand

Optional (65", 75", and 86")

Wall-mounted bracket

Optional (65", 75", and 86")

IdeaShare Key

Optional

OPS

Optional

Resolution

4K UHD (3840 x 2160)

Backlight type

D-LED

Lamination

Zero-gap bonding

Viewing angle

178°

Color depth

10-bit (8-bit + FRC)

Color gamut

85% NTSC (typical value)

Refresh rate

60 Hz

Number of touch points

20

Zoom

2x digital zoom

Maximum angle of view

Horizontal: 80°/ Vertical: 50°

Video output resolution

4K

TV distortion

<2%

Aperture

F/1.8

Frequency domain

100Hz-20kHz

Speaker unit

2 x full frequency speaker + 2 x high-frequency speaker

Stereo

Maximum power

30W

Sound pickup angle

180°

Quantity

6

Frequency domain

100Hz-20kHz

Sound pickup distance

10m

Dual-Wi-Fi module

Frequency

2.4 GHz/5 GHz

CPU

4-core

RAM

4 GB

Flash

32 GB

OS

Android 9.0/Windows 10* * To use Windows 10, an OPS plug-in computer is required.

Front-panel ports

· USB Type-C x 1 ·USB Type-A 3.0 x 2

Side-panel ports

·USB Type-A 3.0 x 1 ·USB Type-B x 1 ·HDMI IN x 2 ·HDMI OUT x 1 ·COM port x 1 ·RJ45 network port x 1 ·80-pin OPS port x 1 ·3.5mm Line-in x 1 ·3.5mm Line-out x 1

Third-party meeting app

Projection mode

·IdeaShare projection code ·HDMI and Type-C wired projection ·IdeaShare Key ·NFC and projection through the drop-down menu

Projection effect

·Wireless projection: up to 4K 30 fps ·Wired projection: up to 4K 60 fps

Supported OS on clients

Android / Windows / iOS / macOS

Annotation during projection

Reverse control

Writing latency

≤25ms

Precision

±1mm

Touch sensing distance

≤1.5mm

Whiteboard saving mode

QR code scanning/Email/Local storage/USB flash drive

Intelligent writing recognition
