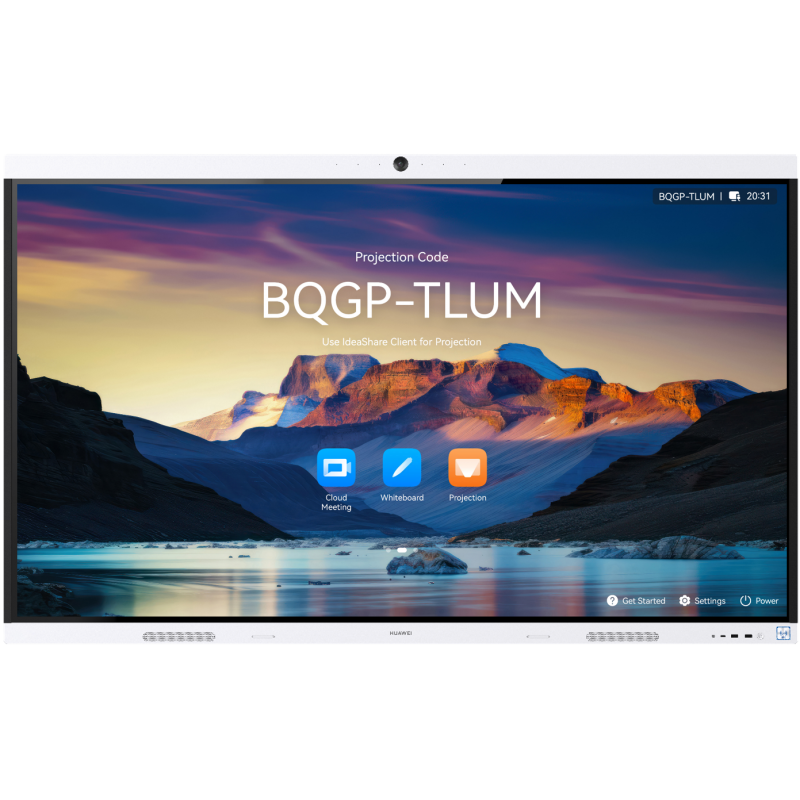

IdeaHub B3
HUAWEI IdeaHub B3, Intelligent Collaboration Device infrared screen, Jade white, overseas
Product name
IdeaHub B3
Product model
65": IHB3-65SA | 75": IHB3-75SA | 86": IHB3-86SA
Product dimensions(H x W x D)
65": 916.1 mm x 1484.5 mm x 91.6 mm | 75": 1040.5 mm x 1705.7 mm x 91.8 mm | 86": 1180.6 mm x 1953.0 mm x 91.8 mm
Package dimensions (H x W x D)
65": 1050 mm x 1650 mm x 220 mm | 75": 1170 mm x 1900 mm x 220 mm | 86": 1300 mm x 2090 mm x 250 mm
Net/Gross weight (including the package)
65": 35.5 kg/43.0 kg | 75": 47.8 kg/57.8 kg | 86": 63.0 kg/74.5 kg
OPS
Optional
Backlight type
D-LED
Screen Lamination
Zero-gap bonding
Latency
16 ms
Touch sensing distance
≤ 1.5 mm
Resolution
4K
Lens cap for privacy protection
×
Horizontal FoV
80°
TV distortion
＜2%
Speaker frequency domain
100 Hz to 20 kHz
Number of speaker units
4
Speaker total power
30W
Sound pickup angle
180°
Sound pickup distance
10m
Microphone frequency domain
100 Hz to 20 kHz
Quantity of Microphone
6
Native meeting apps
Huawei Cloud Meeting and WeLink
Dual streams (audio/video + data sharing)
1080p30fps+1080p15fps/4K3fps
BYOM
√
Auto-Framing
√
Intelligent tracking
√
Acoustic baffle
√
CPU
8-core
RAM
8 GB
Flash
64 GB
OS
HarmonyOS, Windows (OPS required)
Wi-Fi module
Wi-Fi 6
Wi-Fi frequency
2.4 GHz + 5 GHz
NFC
√
Port
Front-panel ports: 1 x Type-C/2 x USB 3.0 Side-panel ports: 1 x 3.5mm LINE IN/1 x 3.5mm LINE OUT 2 x HDMI IN/1 x HDMI OUT 1 x USB 3.0 1 x RJ45 (10/100/1000 Mbit/s LAN) 1 x COM port
