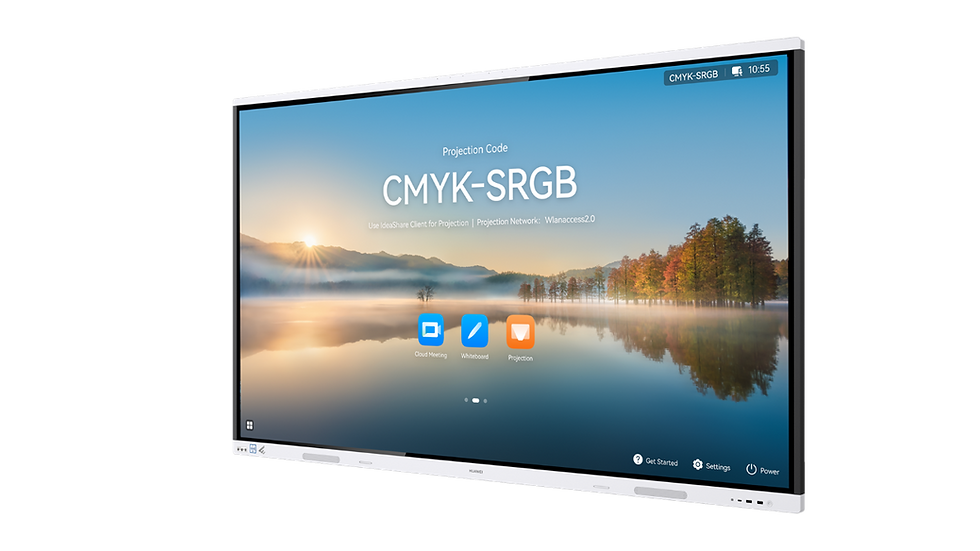

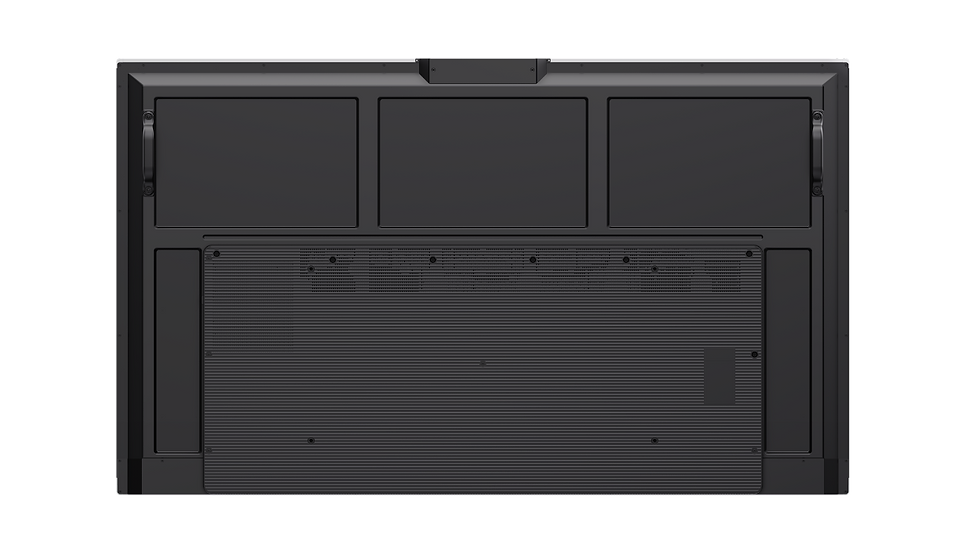

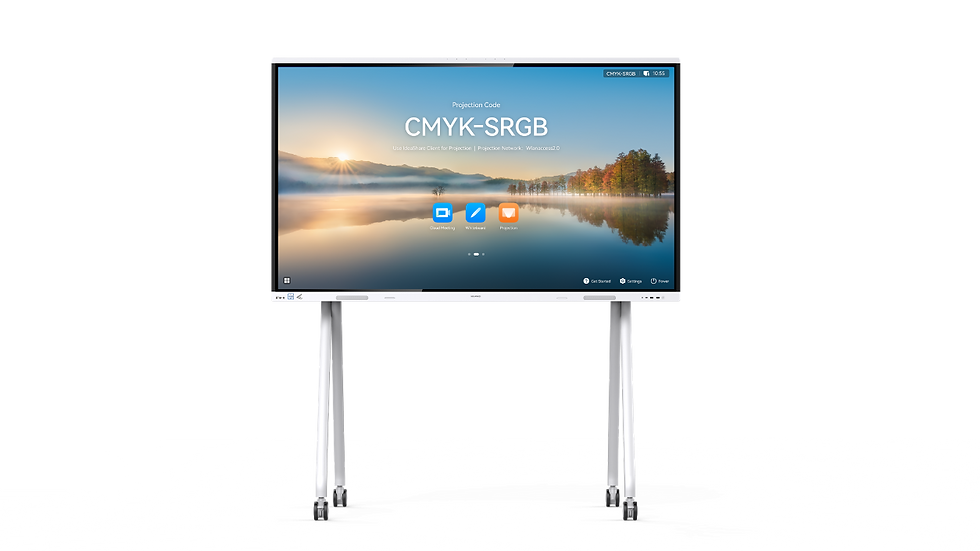

IdeaHub Board 3 Pro

Product name

IdeaHub Board 3 Pro

Product model

65": IHB2-65PB 75": IHB2-75PB 86": IHВ2-86PB

Product dimensions(H x W x D)

65": 892.5 mm x 1484.5 mm x 91.6 mm 75": 1016.9 mm x 1705.7 mm x 91.8 mm 86": 1157.0 mm x 1953.0 mm x 91.8 mm

Package dimensions (H x W x D)

65": 1050 mm x 1650 mm x 220 mm 75": 1170 mm x 1900 mm x 220 mm 86": 1300 mm x 2090 mm x 250 mm

Net/Gross weight (including the package)

65": 35.2 kg/42.7 kg 75": 46.7 kg/56.7 kg 86": 61.6 kg/73.1 kg

OPS

Optional

Resolution

4K (3840 x 2160 pixels)

Backlight type

D-LED

Screen Lamination

Zero-gap bonding

Latency

16ms

Touch sensing distance

≤ 1.5 mm

Speaker frequency domain

100 Hz to 20 kHz

Number of speaker units

4

Speaker total power

30 W

Sound pickup angle

180°

Sound pickup distance

10m

Microphone frequency domain

100 Hz to 20 kHz

Quantity of Microphone

6

Native meeting apps

Huawei Cloud Meeting and WeLink

Dual streams (audio/video + data sharing)

1080p30fps+1080p15fps/4K3fps

BYOM

√

Auto-Framing

×

Intelligent tracking

×

Acoustic baffle

×

CPU

8-core

RAM

8 GB

Flash

64 GB

OS

HarmonyOS, Windows (OPS required)

Wi-Fi module

Wi-Fi 6

Wi-Fi frequency

2.4 GHz + 5 GHz

NFC

√

Port

Front-panel ports: 1 x Type-C/2 x USB 3.0 Side-panel ports: 1 x 3.5mm LINE IN/1 x 3.5mm LINE OUT 2 x HDMI IN/1 x HDMI OUT 1 x USB 3.0/2 x USB 2.0/1 x Type-B 1 x RJ45 (10/100/1000 Mbit/s LAN) 1 x COM port
