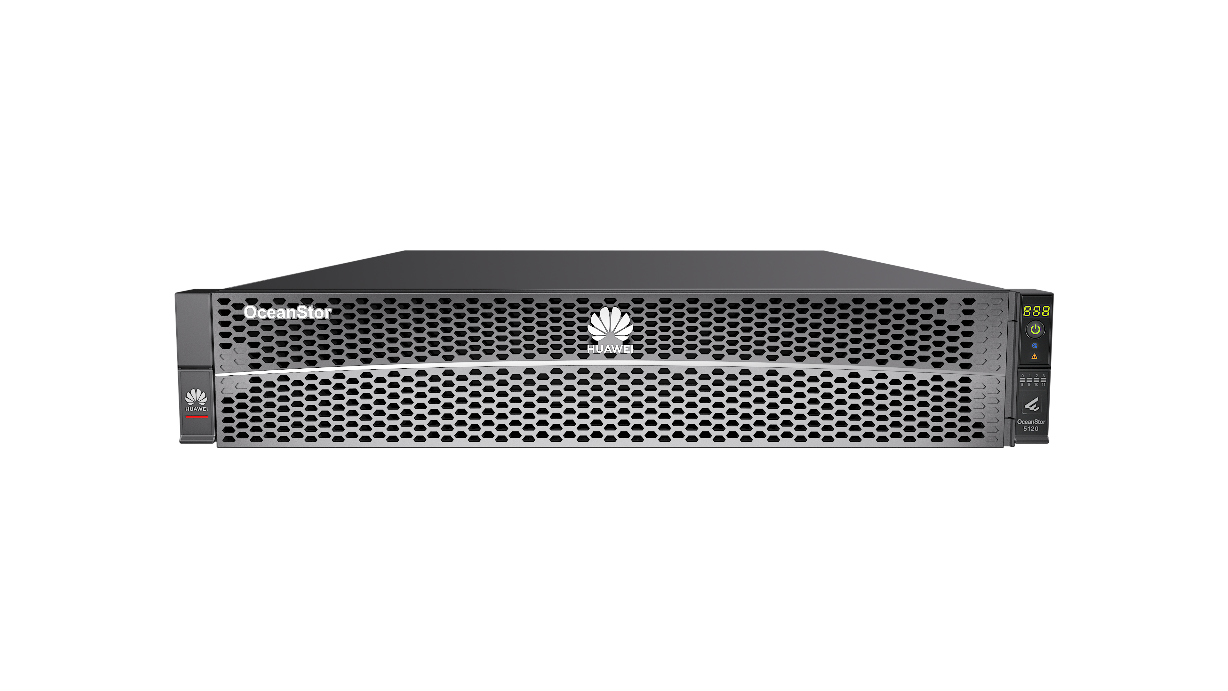

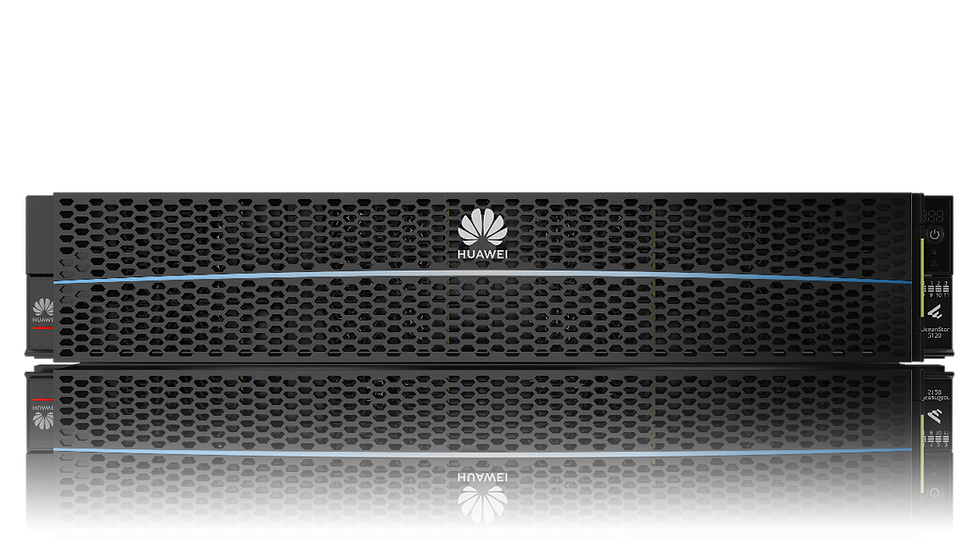

OceanStor 5120/5220
5120(2U, Dual Controllers, SAS, AC\240V HVDC, 32GB Cache, 8*1Gb ETH,4*10Gb ETH(Including Multi-Mode SFP+),4*SAS3.0 port,12*3.5 Inch SAS,SPE26C0212)
System Cache (Dual-Controller)
32GB/64GB
Maximum Cache (Dual-Controller; Expands with Controllers)
32GB-256GB
Supported Storage Protocols
FC, iSCSI, NFS, CIFS
Front-End Port Types
8/16/32 Gbps FC, 1/10/25 Gbps Ethernet
Back-End Port Types
SAS 3.0
Maximum Number of Hot-Swappable I/O Modules per Controller Enclosure
4
Maximum Number of Front-End Ports per Controller Enclosure
28
Disk Types
SSD, SAS, NL-SAS
Supported SCMs
Not supported
Supported RAID Levels
RAID 10, RAID 5, RAID 6, and RAID-TP (tolerating simultaneous failure of 3 disks)
Value-Added Features
SmartAcceleration, SmartThin, SmartMigration, HyperSnap, SmartQoS, HyperLock, SmartMulti-Tenant, SmartQuota, SmartErase, HyperVault, HyperMetro, HyperReplication, HyperClone, SmartVirtualization, HyperCDP, HyperEncryption, SmartCompression, SmartMobility, SmartMigration for NAS
Storage Management Software
UltraPath, DeviceManager, BCManager, DME IQ
Power Supply
100 V to 240 V AC±10%, 192 V to 288 V DC –38.4 V to –75 V DC (only supported by disk enclosures)
Controller Enclosure Dimensions (H x W x D)
2.5-inch controller enclosure: 86.1 mm × 447 mm × 410 mm 3.5-inch controller enclosure: 86.1 mm × 447 mm × 488 mm
Disk Enclosure Dimensions (H x W x D)
2.5-inch SAS disk enclosure: 86.1 mm × 447 mm × 410 mm 3.5-inch SAS disk enclosure: 175 mm × 447 mm × 488 mm
Controller Enclosure Weight (Excl. Disk Units)
2.5-inch controller enclosure: 16.4 kg 3.5-inch controller enclosure: 16.3 kg
Disk Enclosure Weight (Excl. Disk Units)
2.5-inch SAS disk enclosure: 13.4 kg 3.5-inch SAS disk enclosure: 26.5 kg
Operating Temperature
–60 m to +1800 m altitude: 5°C to 35°C (cabinet) or 40°C (enclosure) 1800 m to 3000 m altitude: The maximum temperature threshold decreases by 1°C for every altitude increase of 220 m
Operating Humidity
10%～90％R.H.
