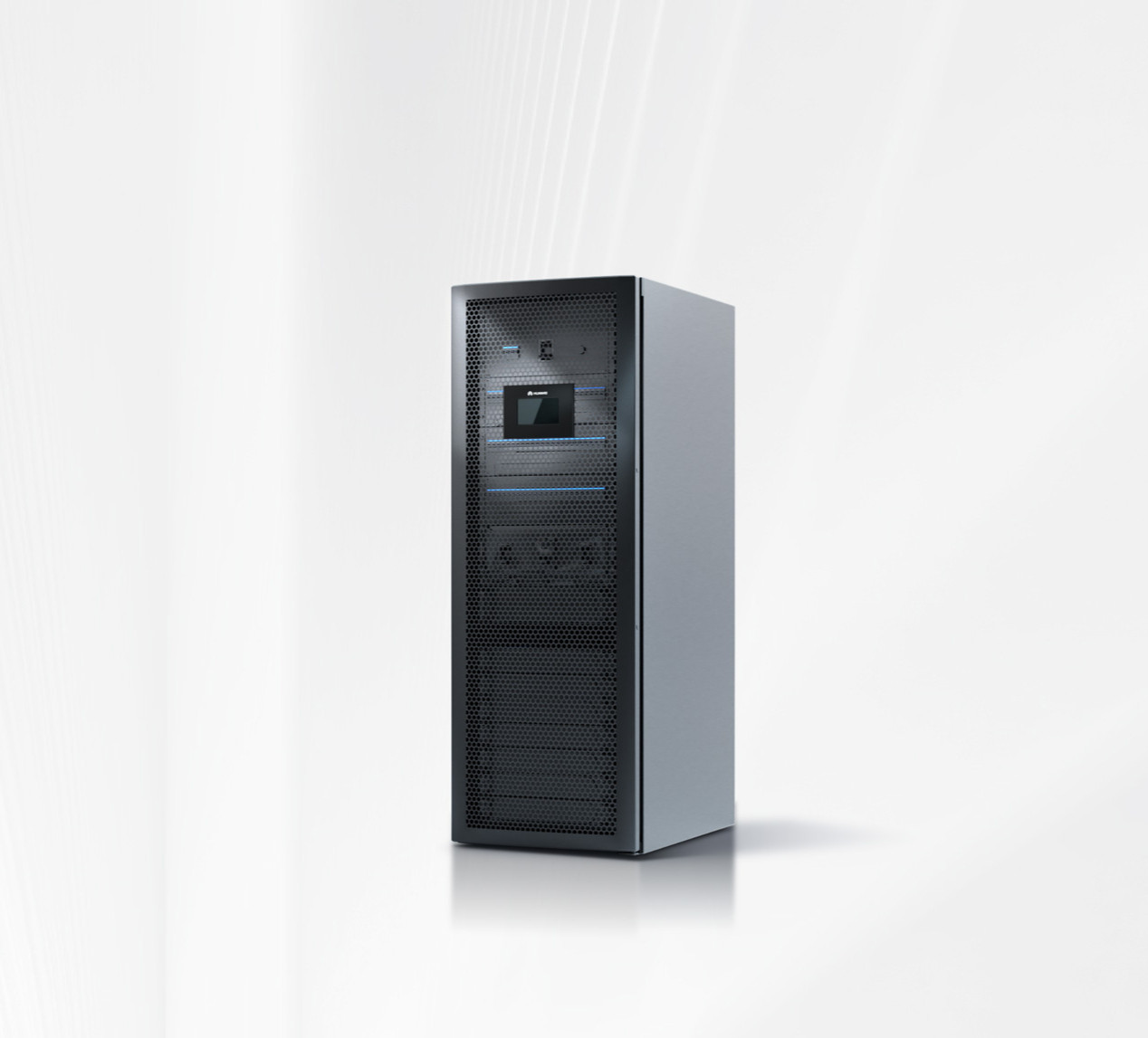

UPS5000-A

Simplified Deployment

30–44 batteries adjustable, enabling precise battery configuration; no need to replace the battery string if a battery is faulty, reducing maintenance costs

Energy-efficient

Up to 96% efficiency, lowering energy consumption by 50% Up to 300 kVA/cabinet power density, reducing footprint by over 50% compared to a traditional UPS

Safe and Reliable

Ultra-wide 138–483 V AC input voltage and 40–70 Hz input frequency, ensuring stable power supply in poor power grids Maximum output PF of 1 and strong load capacity, not...

Series

UPS5000-A(30/40 kVA)

UPS5000-A(60 kVA)

UPS5000-A(400 kVA)

UPS5000-A(500 kVA)

UPS5000-A(600 kVA)

Capacity

30/40 kVA

60 kVA

400 kVA

500 kVA

600 kVA

Input Voltage

380/400/415 V

380/400/415 V

380/400/415 V

380/400/415 V

380/400/415 V

Module Specifications

0-40°C

0-40°C

0-40°C

0-40°C

0-40°C

Output Power Factor

1

0.9

1

1

1

Efficiency (Double Conversion Mode）

up to 95.7%

up to 95.7%

up to 95.7%

up to 95.7%

up to 95.7%

Dimensions (W×D×H, mm)

264×800×500

440×850×1020

1200×850×2000

1200×850×2000

1400×850×2000
